Modernizing enterprise, SMB and industrial networks

Market-optimized Ethernet network switches from multi-gigabit to multi-terabit

The comprehensive Marvell enterprise Ethernet switch portfolio addresses enterprise campus, enterprise data center, SMB, industrial and embedded connectivity applications. The feature-rich Prestera® product family includes silicon optimized for each market and use case, with capacities ranging from 28 Gbps to 12.6 Tbps. The entry-level Link Street® family is optimized for industrial and SMB applications.

EXPLORE ENTERPRISE SWITCHING INFRASTRUCTURE

Enterprise Switches

Organizations of every size and shape are modernizing their networks to accommodate new high-speed Wi-Fi technology, enhance their security posture and implement cloud management and AIOps. In critical infrastructure environments, deterministic Ethernet is displacing proprietary protocols to better integrate OT and IT networks. The Prestera and Link Street switch families offer products optimized for specific access and aggregation requirements to meet the unique needs of each market.

Prestera
Enterprise and Industrial Ethernet Switches

The Prestera® Ethernet switch family encompasses four different series of highly-integrated, feature-rich, multi-layer switches designed to address the needs of the modern enterprise with fit-for-purpose devices that share common software. Prestera devices are optimized for a variety of access, aggregation and embedded applications used in campus, branch, lean branch, SMB and industrial environments.

Prestera switches share a common TIPS feature set: telemetry, intelligence, performance and security. TrackIQ delivers line-rate, in-band telemetry that can be used independently or as part of an AIOps tool to deliver root cause analysis and actionable analytics. NetIQ enables ingress and egress programmability that enables the switch to accommodate emerging standards and new capabilities. SecureIQ facilitates zero-trust security with integrated capabilities like 256-bit MACsec and Secure Boot.

  • 28 Gbps to 12.8 Tbps total bandwidth
  • 24x1GbE to 48x25GbE downlink
  • 1GbE to 100GbE uplink
  • Stacking up to 400GbE
  • Integrated Arm Cortex CPU cores
  • TrackIQ Application-aware telemetry
  • NetIQ Intelligent processing accelerators, programmable engines and embedded compute resources
  • SecureIQ multilayer network-embedded advanced security
  • Time synchronization

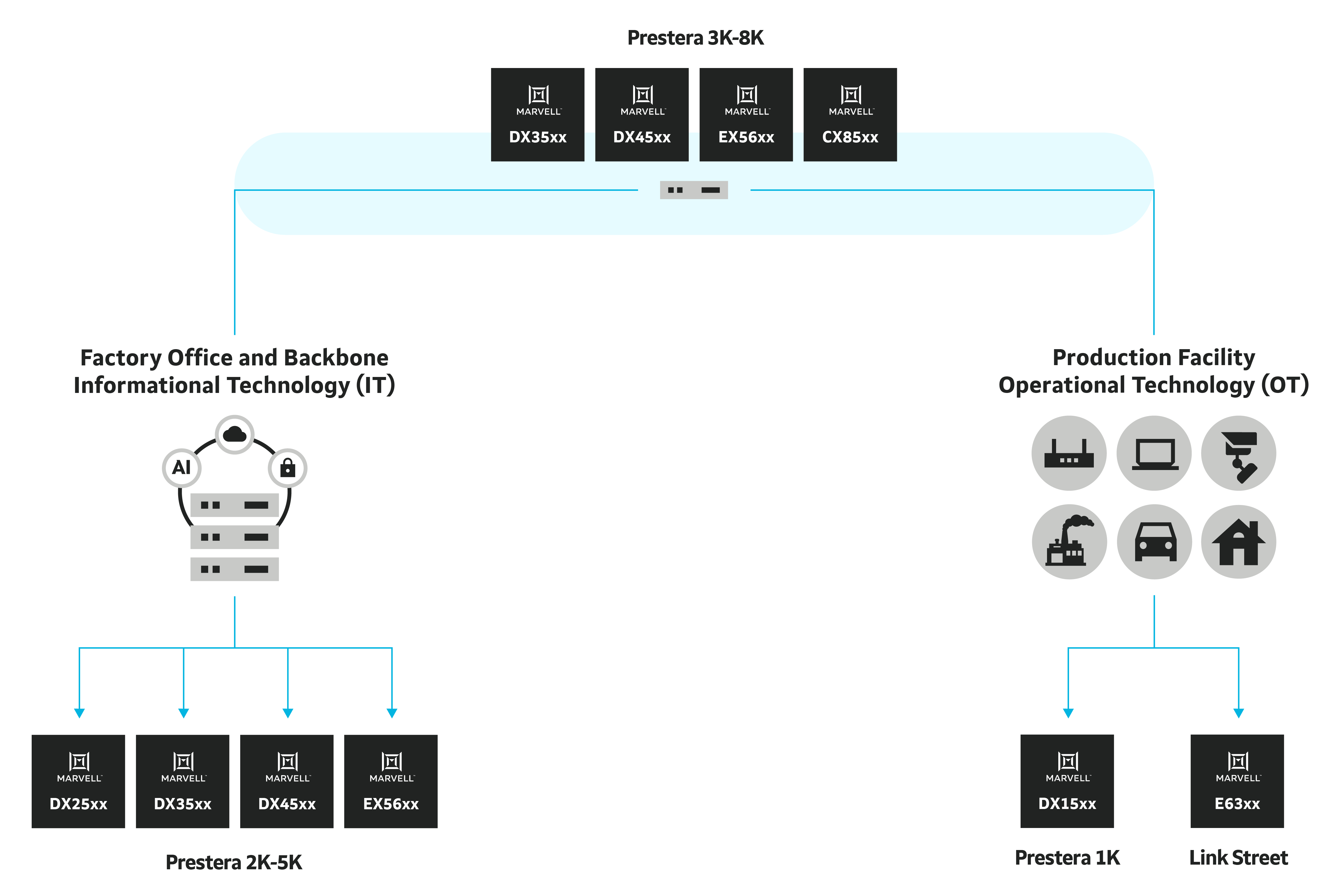

Marvell Switch enterprise campus block diagram

Link Street
Industrial and SMB Ethernet Switches

The Link Street® family of integrated Ethernet switch devices is designed for use in industrial and SMB switch applications. Featuring integrated Fast Ethernet and Gigabit Ethernet PHYs, Link Street devices offer configurations and functionality for switch systems in which ease-of-use and flexibility are of paramount importance.

Link Street switch devices integrate a high-performance, non-blocking gigabit switching fabric with four to eight priority queues, a high-speed lookup engine, multiple GMII interface ports, and 1 to 2 MB of packet memory. Other advanced features include IEEE 802.1p/IPv4/IPv6 traffic classification and port-based VLANs.

  • 5x to 8x10/100/1000 Mbps PHYs
  • Integrated 1G to 2.5G SerDes or xMII
  • Access control lists (ACLs) and policy control lists (PCLs)
  • Quality of service (QoS) support for up to eight traffic classes
  • IEEE 802.1Q VLANs
  • IEEE 1588v2 time synchronization
  • IEEE 802.1BR port extender
  • TCAM for deep packet inspection
Marvell Switch enterprise campus block diagram

Access Products

Prestera 2500 Series

L2/L3 switch devices supporting up to 24x1GbE downlink ports and 4x1/2.5/5/10GbE uplink and stacking ports (P/N: 98DX25xx)

Prestera 3500 Series

L2/L3+ switch devices supporting up to 48x1/2.5GbE downlink ports, 10/25GbE uplink ports and 25/50GbE stacking ports (P/N: 98DX35xx)

Prestera 4500 Series

L2/L3+ switch devices supporting up to 48x1/2.5/5GbE and 24x10GbE downlink ports, 10/25GbE uplink ports and 100/200/400GbE stacking ports (P/N: 98DX45xx)

Aggregation Products

Prestera 8500C Series

L2/L3 switch/routing devices supporting up to 48x1/2.5/5/10GbE downlink ports and 24x25GbE or 6x100GbE uplink ports (P/N: 98CX85xx)

Embedded Connectivity Products

Prestera 7300 Series

L2/L3 switch/routing devices supporting up to 32x1/2.5/5/10/25/50GbE, 16x100GbE, 8x200GbE and 4x400GbE ports (P/N: 98DX73xx)

Prestera 8300 Series

L2/L3 switch/routing devices supporting up to 72x1/2.5/5/10GbE ports (P/N: 98DX83xx)

Prestera 8500 Series

L2/L3 switch/routing devices supporting up to 72x1/2.5/5/10/25GbE, 36x50GbE and 18x100GbE ports (P/N: 98DX85xx)

Industrial Products

Prestera 1500 Series

Ruggedized L2/L3 switch devices supporting up to 54x1/2.5GbE downlink ports and Time Sensitive Networking (P/N: DX15xx)

Link Street 6393X

Ruggedized L2/L2+ switch/router device supporting 8x1GbE, 2x1G SerDes (XFI), and 1x1G SerDes of RGMII. Supports 1588v2. (P/N: 88E6393X)

Link Street 6390

Ruggedized L2/L2+ switch/router device supporting 8x1GbE, 2x2.5G SerDes, XAUI/RXAUI, and 1x2.5G SerDes of RGMII. Supports 1588v2, TSN, AVB. (P/N: 88E6390)

Link Street 6361

Ruggedized L2/L2+ switch/router device supporting 5x10/100/1000 downlink ports and 2x1/2.5/10G XAUI/RXAUI, and 1x1G SerDes or RGMII/MII/RMII. Supports 1588v2. (P/N: 88E6361)
